Explore the full range of
Starrett world-class CMMs.
Starrett has developed a complete new look to its
range of CMMs with unique construction and design
features that result in superb performance, even in
tough, uncontrolled environments.
With exceptional accuracy, speed and throughput,
Starrett machines offer the very best in price and
performance.
Base Machine Advantages: All Starrett CMMs are
similar in design, with emphasis placed on stability,
accuracy and speed. Because we manufacture our own
granite, we utilize its unmatched vibration damping
qualities, thermal stability and compressive strength to
the fullest in our machine design. We use a granite plate
as the base reference plane and have also developed a
unique, patented, hollow granite bridge design and a
ceramic Z-axis. Ceramic also has the strength, stability
and similar thermal characteristics of granite. This
granite-ceramic design combination has a weight similar
to aluminum which is used in many other competitive
machines, but it does not have the "shimmy, shake
and thermal instability problems" that aluminum has.
Our stability, therefore, is already built-in. We also
employ preloaded air bearings on all three axes.
Software: We offer powerful and easy-to-use
software programs. The Starrett Measure Manager is
designed for manual machines, and Measure Manager-DCC is
for all driven machines.
Probes: Starrett systems feature the full range
of manual and motorized probing and camera systems from
Renishaw.
Accuracy: Each CMM is thoroughly inspected
prior to shipment in accordance with the U.S. ANSI
B89.1.12 specification. We meet or exceed published
accuracy levels, and all equipment used to perform these
tests is traceable to the U.S. National Institute of
Standards and Technology. NOTE: Specifications and
testing for VDI-VDE 2617 are available upon request.
Speed: The real measure of coordinate measuring
machine speed is the time to complete the total measuring
cycle, from initiation of inspection to accuracy
verification. Using this true test of speed, we will
match up with any system for the total
"floor-to-floor" time required to accurately
complete the inspection process.
We have three moving bridge machine series based on
the Z-axis range:
- Premis - consists of
all machines with a Z-axis range under 20"
(508 mm)
- Aurora - consists Of
all machines with a Z-axis range of 20" to
40" (508 to under 1 m)
- Vanguard - large
machines have a 40" (1 m) Z-axis
With a few exceptions noted, all of our machines are
available in either manual, joystick or fully automatic
mode.
Software for both manual
control and direct
computer control applications is
also available.
Send us email
to arrange a demonstration
at a location near you.

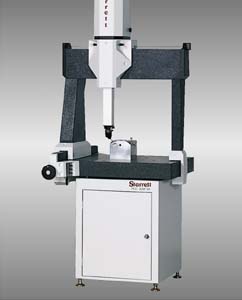

16" (406 mm) Z-Axis
No. HGC Series - Manual
No. HGDC Series - Direct Computer Controlled
The Premis range of
compact/"personal" CMMs is available in either
manual or Direct Computer Controlled (DCC). These
machines combine accuracy, performance and ease of use at
a very affordable price. Designed with the customer in
mind, the manual version can be fully upgraded to DCC at
your facility, allowing the machine to be adapted to your
changing needs.
Features and benefits:
- Largest measuring capacity in its class
- Hollow Granite technology design for less weight
with thermal stability
- Ceramic 16" (406 mm) Z-axis has the thermal
characteristics of granite with a high
stiffness-to-weight ratio
- Porous graphite preloaded air bearings provide
better lift and eliminate weight shift in motion
with minimal air consumption
- Continuous travel - fine-feed adjustment on
manual machine
- Supplied standard with Measure Manager DCC
software, featuring a graphical user interface
for ease of use and measurement power
- Supplied with support cabinet complete with
anti-vibration mounts
- Wraparound outboard leg for maximum dynamic
stability
Table Working Capacity Maximum Workpiece Dimensions
- Inch (mm)
Model Nos. HGCP018-16, HGDCPO1 8-16
| Length |
Width |
Height* |
Weight* |
26"
(660) |
25"
(635) |
18"
(457) |
250 lbs
(113 kg) |
Model Nos. HGC2420-16, HGDC2420-16
32"
(813) |
25"
(635) |
18"
(457) |
300 lbs
(136 kg) |
*Clearance under bridge of machine without probe in
Z-axis.
**Additional weight capacity available.
NOTES: All machines are moving bridge and touch
probe. Specifications subject to change without notice.
Send us email to arrange a demonstration
at a location near you.

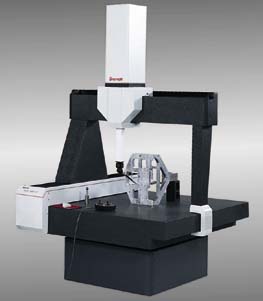

24" (610 mm) Z-Axis
No. RGC Series - Manual
No. RGDC Series - Direct Computer Controlled
Available in manual, manual/joystick and full Direct
Computer Controlled (DCC), the Aurora combines high
accuracy and throughput with powerful Measure Manager or
Measure Manager DCC Software.
Incorporating advanced designs to satisfy industry's
most demanding measurement needs, the Aurora outperforms
competitive systems, offering the best
price-to-performance ratio of any mid to large-sized
CMMs.
Features and Benefits:
- Hollow Granite technology for less weight
with thermal stability
- Ceramic Z-axis has the thermal
characteristics of granite with a high
stiffness-to-weight ratio
- Large bearing aspect ratios and wraparound
outboard leg to achieve outstanding accuracies
- Porous graphite preloaded air bearings
that provide better lift and eliminate weight
shift in motion with minimal air consumption
- All RGC Manual Machines and all RGDG Driven
Machines are supplied standard with Measure
Manager or Measure Manager DCC software,
featuring a graphical user interface for ease of
use and measurement power
- High speed band drive for all RGDC Driven
Machines eliminates vibration and backlash to
provide accurate positioning
- Continuous travel - fine-feed adjustment
on all three axes assists with ease of
measurement
- Wraparound outboard leg for maximum
dynamic stability
Send us email to arrange a demonstration
at a location near you.

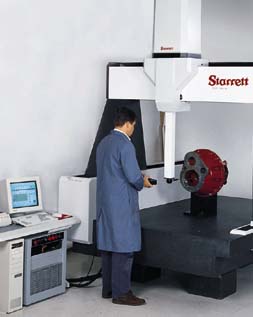

40" (1016 mm) Z-Axis
No. RGDC Series
The Vanguard range of Direct Computer Controlled
machines represents Starrett's largest volume machines
and is a continuation of our innovative approach to CMM
design.
Hollow granite and ceramic are again combined in an
advanced bridge design. The X-beam cross section has been
significantly increased to maintain the geometry and
accuracy required for 40" "Z" measurement.
Using hollow ceramic allows the weight of this section to
be kept to a minimum. When combined with Starrett's
Measure Manager DCC software, the Vanguard is the
ultimate in CMM technology.
Features and Benefits
- Advanced design further reduces mass by
incorporating hollow granite technology
- Ceramic "X" axis and "Z"
axis mimics the thermal characteristics of
granite with a high stiffness-to-weight ratio
- Integrated way covers ensure
minimum contamination in shop environment
- Porous graphite preloaded air bearings
provide better lift and eliminate weight shift in
motion with minimal air consumption
- Precision band drive system
- Large bearing aspect ratios and wraparound
outboard leg to achieve outstanding accuracies.
- Supplied standard with Measure Manager DCC
Software, featuring a graphical user
interface for ease of use and measurement power
- Wraparound outboard leg for maximum
dynamic stability
Send us email to arrange a demonstration
at a location near you.
Manual Control Software with full 3-D capabilities
Meets today's highest metrology standards. .. Starrett
Measure Manager is a powerful, sophisticated and
easy-to-use coordinate measuring machine software
package. It is a 32 bit software application which takes
full advantage of today's powerful computer processing
capabilities, user friendly operating systems and
graphical capabilities. Starrett Measure Manager is
designed to get the inspection job done!
- Designed to serve a variety of users with
different skill levels
- Self-teach learn and edit capabilities for easy
creation of part programs
- Using the ICONS, MENUS or direct TEXT edit of
DMIS commands, the operator interface is designed
to provide the correct level of expertise for
both the user and the inspection task
- Large digital readout display with intelligent
feature buttons for ease of customization
PICTURE PROMPTING for ease of documentation and
inspection path
Unique CAD interface window
- Optional Reverse Engineering capabilities to link
CMM directly to CAD system
- Intelligent Reverse Engineering
- Create CAD model directly from CMM in REAL TIME
- True 3-0 modeling capabilities
Optional REAL TIME SPC
- Charts, graphs and analysis directly from CMM
data
- Output to printer, plotter, etc.
- Pareto analysis
Additional features include Datum macros, U.S. ANSI
Y14.5 tolerancing, extensive probe library, True 3-D
evaluation of features and tolerances, Import/Export in
DMIS format. Create programs off line with standard TEXT
editor. Optional DMIS to ICES translator.
Send us email to arrange a demonstration
at a location near you.
Direct Computer Control (DCC) Software
with full 3-D capabilities
Meets today's highest metrology standards... Starrett
Measure Manager DCC is the most powerful, sophisticated,
easy-to-use direct computer control CMM software package
available. It is a 32 bit software application which
takes full advantage of today's powerful computer
processing capabilities, user-friendly operating systems
and graphical capabilities. Measure Manager DCC is
designed to get the inspection job done!
- Designed to serve a variety of users with
different skill levels
- Using the ICONS, MENUS or direct TEXT entry of
commands, the operator interface is designed to
provide the correct level of sophistication for
both the user and the inspection task
- Direct import of CAD information in a variety of
formats closes the loop between DESIGN,
MANUFACTURING and INSPECTION
- Flexible inspection reports using the
sophisticated report generator in both TEXT and
GRAPHIC modes
- Powerful graphical analysis evaluations for even
the most demanding requirements
- Reverse engineering capabilities to convert
inspection results into a CAD model
- Powerful CMM motion control for fast, accurate
machine positioning and measuring
Unique CAD interface window
- Create programs directly from CAD model
- Uses a variety of formats (DXF, IGES, DWG, HPGL,
etc.)
- Use 2-D and 3-D wire frames and IGES nurbs
- View control - zoom, pan, rotate redlining tools
for process documentation
- Paste image to clipboard for use by other
applications
Sophisticated Geometric Analysis
- Form, size and position plots for 2-D and 3-D
features
- 2-D best fit points to a set of features
- 3-D best fit points to a set of nurbs surfaces
- 3-D graphical view with zoom, pan and rotate
- Surface normal vector display
Additional features include flexible report generator,
direct link to SPC analysis software, Industrial
Interface for input and output, networking capabilities,
user-definable tolerance, probe, motion control and
report format libraries. User variables, flow control,
subroutine branching as well as file open/read/write
capabilities also available.
Send us email to arrange a demonstration
at a location near you.
|
